Vibro Replacement

Vibro replacement (VR) is a deep foundation soil improvement technique that utilizes high-frequency vibrations and granular material to densify and reinforce soft soils, such as clays, silts, and organic soils. It is an effective method for enhancing the bearing capacity and reducing settlement potential in areas with challenging ground conditions.

Key Components of Vibro Replacement

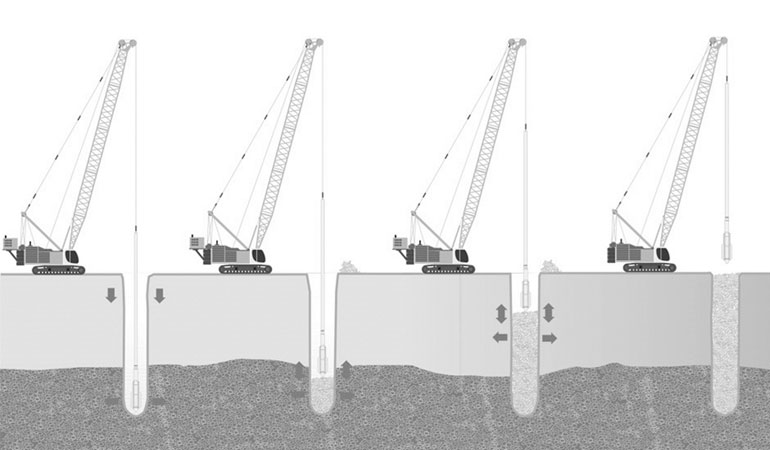

1. Vibratory Probe: The vibratory probe is the central tool for creating the stone columns. It consists of a hollow shaft with an eccentric weight that generates high-frequency vibrations as it is inserted and withdrawn from the ground.
2. Granular Material: The granular material, typically gravel or crushed stone, is injected into the liquefied soil around the vibrating probe. The quality and gradation of the material are crucial for achieving the desired column strength and permeability.

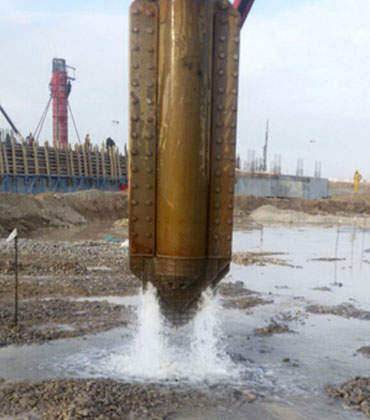

3. Water Jetting: Water jetting is often employed to facilitate the penetration of the granular material and enhance soil liquefaction. The water also helps to flush out fine soil particles and create a clear path for the stone columns.
4. Monitoring and Control: Settlement monitoring devices are installed to track the soil's response to the vibro replacement process. The probe depth, vibration intensity, and granular material injection rate are adjusted based on monitoring data to achieve the desired densification, column formation, and engineering properties.

Advantages of Vibro Replacement

• Effective for Soft Soils: Specifically designed to address problematic soft soils, such as clays, silts, and organic soils, where other methods may be ineffective.
• Improves Bearing Capacity: Significantly enhances the soil's ability to support structural loads, reducing settlement risks and enabling the construction of foundations on soft ground.
• Reduces Settlement Potential: Mitigates excessive settlement under static and dynamic loading, protecting structures from damage and preserving serviceability.
• Versatility: Applicable to a wide range of project sites and soil conditions, including infrastructure projects, commercial and industrial developments, and environmental remediation efforts.
• Cost-Effectiveness: Economical solution for ground improvement in comparison to alternative methods, particularly for large-scale projects.

Applications of Vibro Replacement

• Foundation Support for Structures: Preparing a stable and uniform foundation for buildings, bridges, and other structures on soft or compressible soils.
• Road and Pavement Subgrades: Enhancing the strength and stiffness of subgrades for road and pavement construction, reducing pavement cracking and rutting.
• Slope Stabilization: Stabilizing slopes and embankments by reinforcing the underlying soft soil mass and preventing landslides.
• Liquefaction Mitigation: Reducing the susceptibility of loose granular soils to liquefaction during earthquakes, protecting structures from seismic hazards.
• Environmental Remediation: Improving the stability of landfills, containment berms, and other engineered structures constructed on soft soils.

Conclusion

Vibro replacement serves as a valuable ground improvement technique for addressing challenging soil conditions and enhancing the performance of foundations, subgrades, and slopes. Its effectiveness in densifying and reinforcing soft soils, coupled with its versatility and cost-effectiveness, makes it a preferred method for a wide range of civil engineering applications, particularly in infrastructure development and foundation construction.
