Vibro Compaction

Introduction

Vibro compaction, also known as vibroflotation, is a ground improvement technique widely used to increase the density and stability of granular soils. This method is particularly effective for sands and gravels, which are typically loose and prone to settlement. The process involves the use of powerful depth vibrators to rearrange soil particles into a denser configuration. This essay explores the principles, applications, benefits, and limitations of vibro compaction, highlighting its importance in modern civil engineering and construction.

Principles of Vibro Compaction

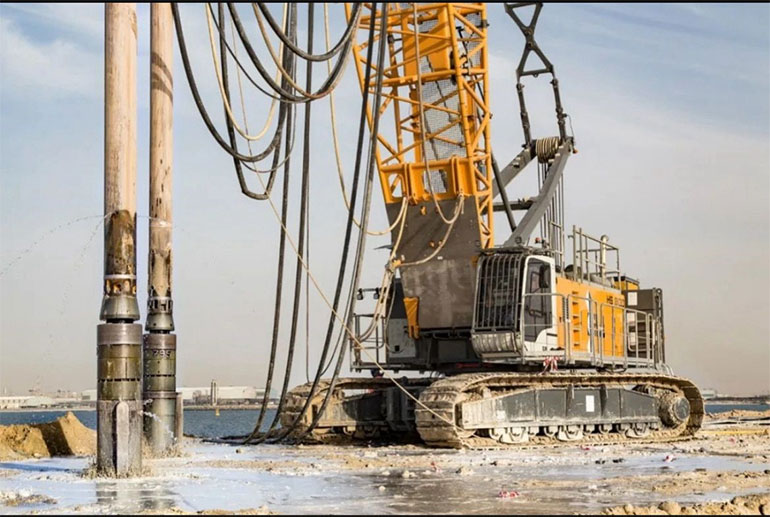

The fundamental principle behind vibro compaction is the application of vibratory energy to the soil. A cylindrical depth vibrator, often referred to as a vibroflot, is inserted into the ground to the required depth. The vibrator generates horizontal vibrations that cause the surrounding soil particles to rearrange and compact. Water is typically used to assist in the process, either by jetting through the vibrator or from the ground surface, to reduce friction and facilitate particle movement.

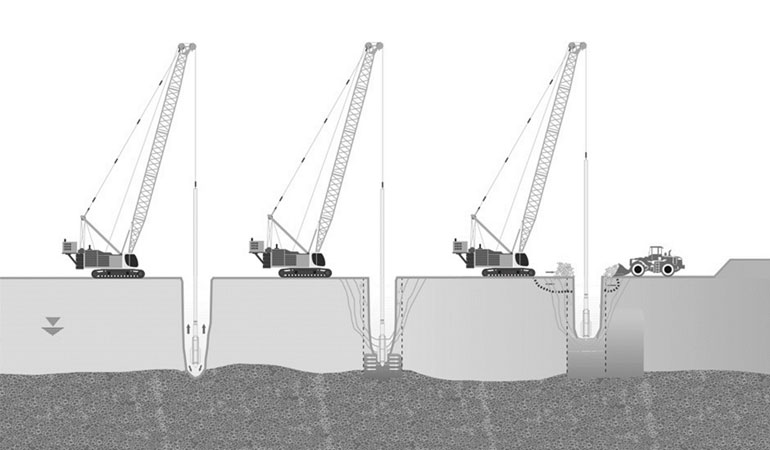

The compaction process is usually carried out in stages, starting from the deepest point and moving upwards in intervals. This ensures uniform compaction throughout the soil column. The effectiveness of vibro compaction depends on several factors, including the soil type, the size and power of the vibrator, the compaction grid spacing, and the duration of vibration.

Applications of Vibro Compaction

Vibro compaction is employed in various construction and engineering projects, particularly those involving granular soils:

1. Foundation Improvement: Enhancing the load-bearing capacity of soils for buildings, bridges, and other structures. By densifying the soil, vibro compaction reduces the risk of differential settlement and increases overall stability.
2. Land Reclamation: Preparing reclaimed land for construction by densifying loose fill materials. This is especially important in coastal regions where land reclamation is common.
3. Embankments and Dams: Stabilizing the foundation soils of embankments and dams to prevent settlement and ensure structural integrity. Vibro compaction helps in achieving the required soil strength and density.
4. Airport Runways and Taxiways: Preparing the subgrade for airport infrastructure to support the heavy loads and stresses associated with aviation operations. This ensures a stable and durable runway surface.
5. Industrial and Storage Facilities: Providing a stable base for heavy machinery, storage tanks, and other industrial installations. The improved soil properties help in supporting large loads and reducing the risk of ground movement.

Benefits of Vibro Compaction

The use of vibro compaction offers several advantages:

1. Increased Density and Strength: The primary benefit of vibro compaction is the significant increase in soil density and strength, resulting in improved load-bearing capacity and stability.
2. Reduction in Settlement: By densifying loose granular soils, vibro compaction reduces the risk of settlement, which can lead to structural damage and increased maintenance costs.
3. Cost-Effective: Compared to deep foundation alternatives such as piling, vibro compaction is often more economical. It requires less material and time, leading to cost savings in both construction and long-term maintenance.
4. Versatility: Vibro compaction can be used in a variety of soil types and project conditions, making it a versatile solution for ground improvement.
5. Environmental Benefits: The process is less invasive and generates less spoil compared to other soil improvement methods, reducing the environmental impact.

Limitations and Considerations

While vibro compaction is highly effective, there are certain limitations and considerations:

1. Soil Type: The technique is most effective in granular soils such as sands and gravels. It is less suitable for cohesive soils like clays and silts, which do not respond well to vibratory energy.
2. Depth Limitations: The effectiveness of vibro compaction decreases with depth. For very deep soil improvement, additional methods may be required.
3. Groundwater Conditions: High groundwater levels can affect the efficiency of the process. Proper assessment and planning are necessary to ensure optimal results.
4. Equipment and Expertise: The success of vibro compaction depends on the availability of specialized equipment and skilled operators. Ensuring proper execution requires experienced professionals.
5. Environmental and Noise Impact: The vibratory process can generate noise and vibrations, which may be a concern in urban or sensitive areas. Mitigation measures may be needed to minimize these effects.

Conclusion

Vibro compaction is a powerful and efficient technique for improving the stability and load-bearing capacity of granular soils. Its applications in foundation improvement, land reclamation, embankment stabilization, and other areas make it an essential tool in modern civil engineering. By understanding its principles, benefits, and limitations, engineers and construction professionals can effectively utilize vibro compaction to achieve stable and reliable ground conditions for a wide range of projects. As technology and methods continue to advance, the role of vibro compaction in ground improvement is likely to expand, offering even greater potential for enhancing soil stability and supporting infrastructure development.
