Dynamic Replacement

Dynamic replacement (DR) is a deep foundation soil improvement technique that utilizes the repeated impact of a heavy weight to densify and reinforce soft soils, such as clays, silts, and organic soils. It is an effective method for enhancing the bearing capacity and reducing settlement potential in areas with challenging ground conditions.

Dynamic Replacement (DR) is a cost-effective method for enhancing the overall stiffness of clay, silt, and organic soils. It involves using granular backfill to create large-diameter granular columns with high shear strength and improved bearing capacity through soft soils, fills, or waste materials. These columns remain stable even under low confining pressures.

Dynamic Replacement (DR) is an advanced extension of Dynamic Compaction (DC), specifically designed for compressible soils such as soft clays, silt, and sabkha. This technique involves constructing large diameter columns (up to 2.5 meters) of dense granular materials by dropping heavy pounders from significant heights onto the soft soil.

Dynamic Replacement (DR) can be applied as a global treatment for an entire site or as localized treatment under foundations to enhance soil bearing capacity and minimize total and differential post-construction settlements. This method combines the benefits of both dynamic compaction and stone column techniques, creating large, stiff granular columns with high internal shear resistance, and significantly improving the mechanical properties of the intermediate soil.

Mechanism of Dynamic Replacement:

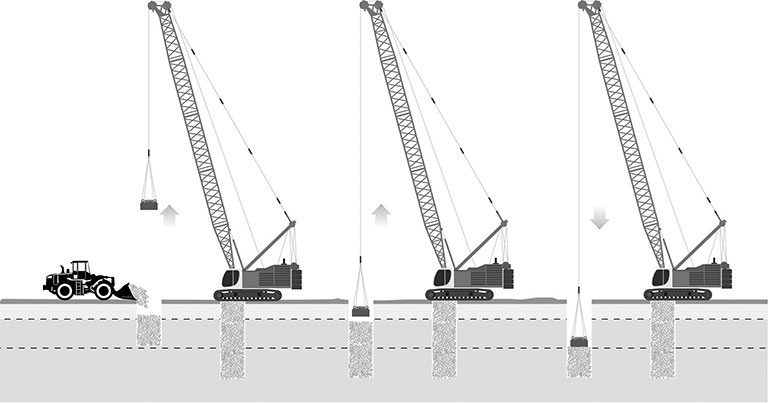

The primary mechanism of dynamic replacement involves the creation of dense granular columns within the soft soil mass. These columns are formed by repeatedly dropping a heavy weight, typically ranging from 20 to 60 tons, onto the ground surface, causing the underlying soil to be displaced and replaced with compacted granular material. The impact energy densifies the surrounding soil and forms a network of interconnected columns, significantly improving the soil's strength and load-bearing capacity.

A wide range of readily available granular materials can be used to construct Dynamic Replacement (DR) columns. While clean, well-graded sands are typically most suitable, other materials such as dune sands, gravel/sand mixes, concrete rubble, or crushed gravel mixed with sand can also be successfully utilized.

Key Components of Dynamic Replacement

1. Weight: The weight, typically ranging from 20 to 60 tons, is the primary energy source for the compaction and replacement process. It is repeatedly dropped from a specified height onto the ground surface.

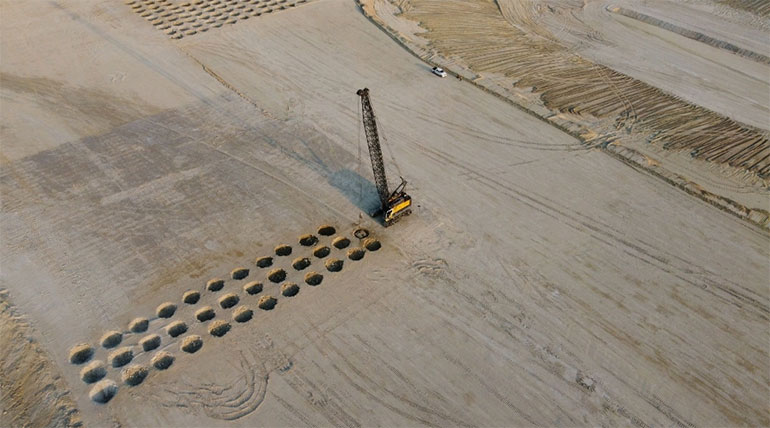

2. Drop Pattern: The drop pattern determines the spatial distribution of the energy imparted to the soil and the arrangement of the granular columns. A systematic grid pattern with overlapping drop points is commonly employed to ensure uniform treatment and densification.
3. Drop Height: The drop height, typically ranging from 6 to 30 feet, influences the depth and intensity of soil densification and column formation. Higher drop heights generally result in deeper and more robust columns.
4. Monitoring and Control: Settlement monitoring devices are installed to track the soil's response to the dynamic replacement process. The drop height, energy, and pattern are adjusted based on monitoring data to achieve the desired densification, column formation, and engineering properties.

Advantages of Dynamic Replacement

• Effective for Soft Soils: Specifically designed to address problematic soft soils, such as clays, silts, and organic soils, where other methods may be ineffective.
• Improves Bearing Capacity: Significantly enhances the soil's ability to support structural loads, reducing settlement risks and enabling the construction of foundations on soft ground.
• Reduces Settlement Potential: Mitigates excessive settlement under static and dynamic loading, protecting structures from damage and preserving serviceability.
• Versatility: Applicable to a wide range of project sites and soil conditions, including infrastructure projects, commercial and industrial developments, and environmental remediation efforts.
• Cost-Effectiveness: Economical solution for ground improvement in comparison to alternative methods, particularly for large-scale projects.

Applications of Dynamic Replacement

• Foundation Support for Structures: Preparing a stable and uniform foundation for buildings, bridges, and other structures on soft or compressible soils.
• Road and Pavement Subgrades: Enhancing the strength and stiffness of subgrades for road and pavement construction, reducing pavement cracking and rutting.
• Slope Stabilization: Stabilizing slopes and embankments by reinforcing the underlying soft soil mass and preventing landslides.
• Liquefaction Mitigation: Reducing the susceptibility of loose granular soils to liquefaction during earthquakes, protecting structures from seismic hazards.
• Environmental Remediation: Improving the stability of landfills, containment berms, and other engineered structures constructed on soft soils.

Conclusion

Dynamic replacement serves as a valuable ground improvement technique for addressing challenging soil conditions and enhancing the performance of foundations, subgrades, and slopes. Its effectiveness in densifying and reinforcing soft soils, coupled with its versatility and cost-effectiveness, makes it a preferred method for a wide range of civil engineering applications, particularly in infrastructure development and foundation construction.
